Quilter's Cruise Control® Parts and Accessories

for use with mid-arm sewing machines



Quilter's Cruise Control® - complete unit

Description: This is a complete QCC - factory packaged with all the parts and components necessary to install onto a mid-arm sewing machine and quilting frame. Now your mid-arm sewing machine can have stitch regulation on the frame! Use pull-down menus to make your selections. Our newest compatibilities: Babylock Jane, Juki QVP Mini and Juki HarukaTL-18QVP.

Please select
Choose Quilting Frame
Choose Mid-Arm Sewing Machine
Specify Model
Enter Code



QCC

machine- and frame-specific; some components may differ from shown

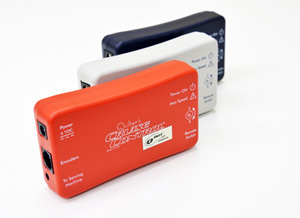

Part Name: QCC Brain

Description: The Quilter's Cruise Control® brain is sewing machine-specific. This style is modular (all cords can be unplugged). Made in the USA.

Price includes USPS shipping to US Addresses. For shipment outside US, fees will be invoiced separately.

Our newest compatibilities: Babylock Jane, Juki QVP Mini & Juki Haruka TL18-QVP

Purchasing Options
Choose Sewing Machine
Specific Model



QCC Brain only

QCC Brain is machine-specific



Part Name: QCC Wiring Harness

Description: This connects the Quilter’s Cruise Control® brain to the optical encoders, as used on a mid-arm sewing machine. It comes standard with purchase of a new, Quilter’s Cruise Control® purchased from LiTen Up Technologies; standard connector shown. Some older models may have a round, 6-pin din connection (not shown). Select Style below. Made in the USA. Final sale item*

Price $43

NOT FOR USE ON LONG-ARM SEWING MACHINES. (see Aftermarket Replacement wiring harness for stitch regulated, Long-Arm machines - press "Back" on your web browser.)

NOTE: Some older models may be hard-wired into the QCC brain. (In other words, the wires cannot be "unplugged" from the unit.) For these models, you will need to send the unit in to the Factory; visit our Support page to download the Service/Repair Ticket. Current Price for this repair is $145 plus shipping

Select Style
Select Mid-Arm Sewing Machine
Specify for "Other Mid-Arm"
Enter Code

QCC_WiringHarness



NOTE: Owners of 18" sewing machine (with built-in stitch regulation), click HERE to order parts.

Part Name: QCC Remote Hand Switch

Description: This plugs into the Quilter’s Cruise Control® brain and allows for remote access to the Stop/Cruise button, and is machine-specific. It comes standard with purchase of a new, Quilter’s Cruise Control purchased from LiTen Up Technologies. Select Sewing Machine and QCC Brain Model at time of order placement to ensure compatibility. Made in the USA. Final sale item*

Price: $35

REQUIRED: Choose Sewing Machine
REQUIRED: Choose QCC Brain model

QCC_remote

May differ from shown - Remote is QCC Brain model-specific

Part Name: Remote Hand Switch for Accustitch with Quilter's Cruise Control®.

Description: This plugs into the Accustitch with Quilter's Cruise Control®, replacing the foot switch to allow for remote on/off. It is sewing machine-specific. Made in the USA. Final sale item*

Price: $35

REQUIRED: Choose Sewing Machine



Part Name: QCC Remote Hand Switch, for older "Legacy" model.

Description: This plugs into an older, Legacy model Quilter’s Cruise Control® brain (black metal enclosure shown at right) and allows for remote access to the Stop/Cruise button, and is machine-specific. Made in the USA. Final sale item*

Price: $35

REQUIRED: Choose Sewing Machine



QCC Legacy Brain

Shown: QCC Legacy-model Brain

Part Name: QCC Optical Encoder, mid-arm machines

Description: The optical encoder works in conjunction with mid-arm sewing machines on quilting frames and the Quilter's Cruise Control®. Two encoders come standard with the purchase of a new Quilter’s Cruise Control®; includes o-rings. Made in the USA. Prices include shipping.

Shown left: The large-hole optical encoder is compatible with the following frames: Pinnacle, Inspira Imperial, Next Generation, Grace (all models except older Little Gracie and GMQ)*, Happy Jack, and John Watts.

Shown right: The small-hole optical encoder is compatible with the following frames: B-Line, HandiQuilter (older model), Inspira (Original), Hinterberg (Original and Stretch), and New Joy (Magic and Gold Standard).

*NOTE: We no longer carry small encoders for use with Grace's black plastic carriages - found on Little Grace and GMQ frames.

Purchasing Options
Choose Quilting Frame
Choose Mid-Arm Sewing Machine
Specify Model

Encoder_lg

Quilt Frame-specific

For use with the Quilter's Cruise Control on a mid-arm sewing machine

Quilt Frame-specific

For use with the Quilter's Cruise Control on a mid-arm sewing machine



NOT FOR USE ON LONG-ARM SEWING MACHINES. (see Aftermarket Replacement Optical Encoders for stitch regulated, Long-Arm machines - press "Back" on your web browser.)

Part Name: QCC Mounting Hardware

Description: This frame-specific hardware comes standard with purchase of a new QCC from LiTen Up Technologies. (if QCC was purchased from an alternate source, the hardware may/may not be for your specific frame.) Final sale item*

Price: $25

Quilting Frame
Specify for "Other" & Model

Hardware

frame-specific hardware may differ from shown above

Part Name: QCC Power Transformer

Description: 6-volt DC power supply for use with Quilter’s Cruise Control® (labeled). It comes standard with purchase of a new Quilter’s Cruise Control®. NOTE: no refunds or exchanges on this item.

Choose One

QCC_power

Part Name: QCC Connector Cord

Beginning 2024 - This part is available for special order only. Contact us with photos of the mid-arm sewing machine (from all angles) and its compatible QCC Brain.

Description: The connector cord plugs into the sewing machine's foot pedal port on one end, and a sewing machine-compatible Quilter's Cruise Control® brain on the other. QCC Brain and QCC Connector Cord are both sewing machine specific. Final sale item*

Price: $40 plus shipping

NOTE: Not all connector cords available are pictured.



ConnectorCord

Samples shown above - specific part shipped may differ from shown

Part Name: O-rings, shipping to US address

Description: These parts work in conjunction with the optical encoders for the Quilter’s Cruise Control®. 4 large o-rings are for use on a Hinterberg frame; 8 small o-rings are for use on all other frames. Price includes 1st class shipping to US addresses. Final sale item*

If you have a long-arm sewing machine, purchase your o-rings on our Aftermarket Replacement Parts page HERE.

IMPORTANT: For shipments outside the US, do not order this item (see below).

Choose Quilting Frame
I will provide a US address

Orings_4 Orings_8

Part Name: O-rings, shipping outside the US

Description: These parts work in conjunction with the optical encoders for the Quilter’s Cruise Control®. 4 large o-rings are for use on a Hinterberg frame; 8 small o-rings are for use on all other frames. Price includes shipping to non-US addresses. Final sale item*

If you have a long-arm sewing machine, purchase your o-rings on our Aftermarket Replacement Parts page HERE.

IMPORTANT: Because these are shipping to a non-US address, an additional shipping charge has been added in accordance with USPS regulations. If this item is purchased in conjunction with other items from our site, we will manually refund this added fee.

Choose Quilting Frame
I will provide my non-US address
I understand that if I add another item

Orings_4 Orings_8

*NOTE: all sales of items priced under $50 are final, no refunds or exchanges.



SUPPORT

QCC Troubleshooting Guide

Below is a link to our Troubleshooting Guide. Going through the outlined steps should result in determination of which specific component is the culprit.

If you're able to determine the troublesome component, here's what you can expect:

  • ...if the problem is the QCC Wiring Harness - purchase a replacement.  UNLESS you have a hardwired QCC Brain (and  you cannot unplug the QCC Wiring Harness)...then you'll need to send the unit in for repair [see Support page]
  • ...if the problem is the QCC Remote Hand Switch - purchase a replacement.
  • ...if the problem is the QCC Power Supply - purchase a replacement.
  • ...if the problem is the O-Rings on your QCC Optical Encoder/s (if you have never changed the o-rings, we recommend that you do so regardless of your other findings...they do not last forever and if they are dry/cracked/missing altogether, it will cause troubles) - purchase a replacement set.
  • ...if the problem is the QCC Optical Encoder (you would need to determine which one; it is highly unlikely that both are problematic) - purchase a replacement.
  • ...if the problem is the QCC Brain - you can send it in for diagnosis/service/repair

Click HERE for PDF of the QCC Troubleshooting Guide.





Sending your QCC Brain into the Factory for Service

Regardless of your Quilter's Cruise Control® brain model...if you're having a problem, we can fix it! The engineer who invented it, designed it, and fabricated it is still working in our Service Dept. As a matter of fact, he owns the company!! He wears many hats, but loves the opportunity to help folks get back up and quilting with their Quilter's Cruise Control! He can fix anything associated with the products we manufacture.

Please download/print/complete the 2-page Service Ticket and send it along with the QCC Brain to be serviced/repaired. Typical turnaround time (standard processing once received in the factory) is 7-12 business days.





Some items are demonstrated on our Videos page.



*International Shipping - Some orders may require additional funds for shipping. Also, please note there may be customs or import duties levied once the package reaches its destination country. Additional charges for customs clearance are the responsibility of the recipient. We have no control over these charges and cannot predict what they may be. Customs policies vary widely from country to country; you may want to contact your local customs office for further information.
